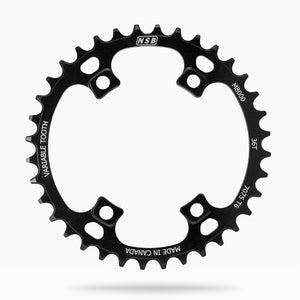

Our narrow wide chainring for Shimano XT cranks with a 96 BCD. The tooth pattern ensures long ring life with excellent chain retention and all of our chainrings feature an optimized chainline for 1x systems.

Fits:

• Shimano Deore XT M8000 1x11 and 2x11 cranks: FC-M8000-1 FC-M8000-2
• Shimano SLX M7000

Specifications:

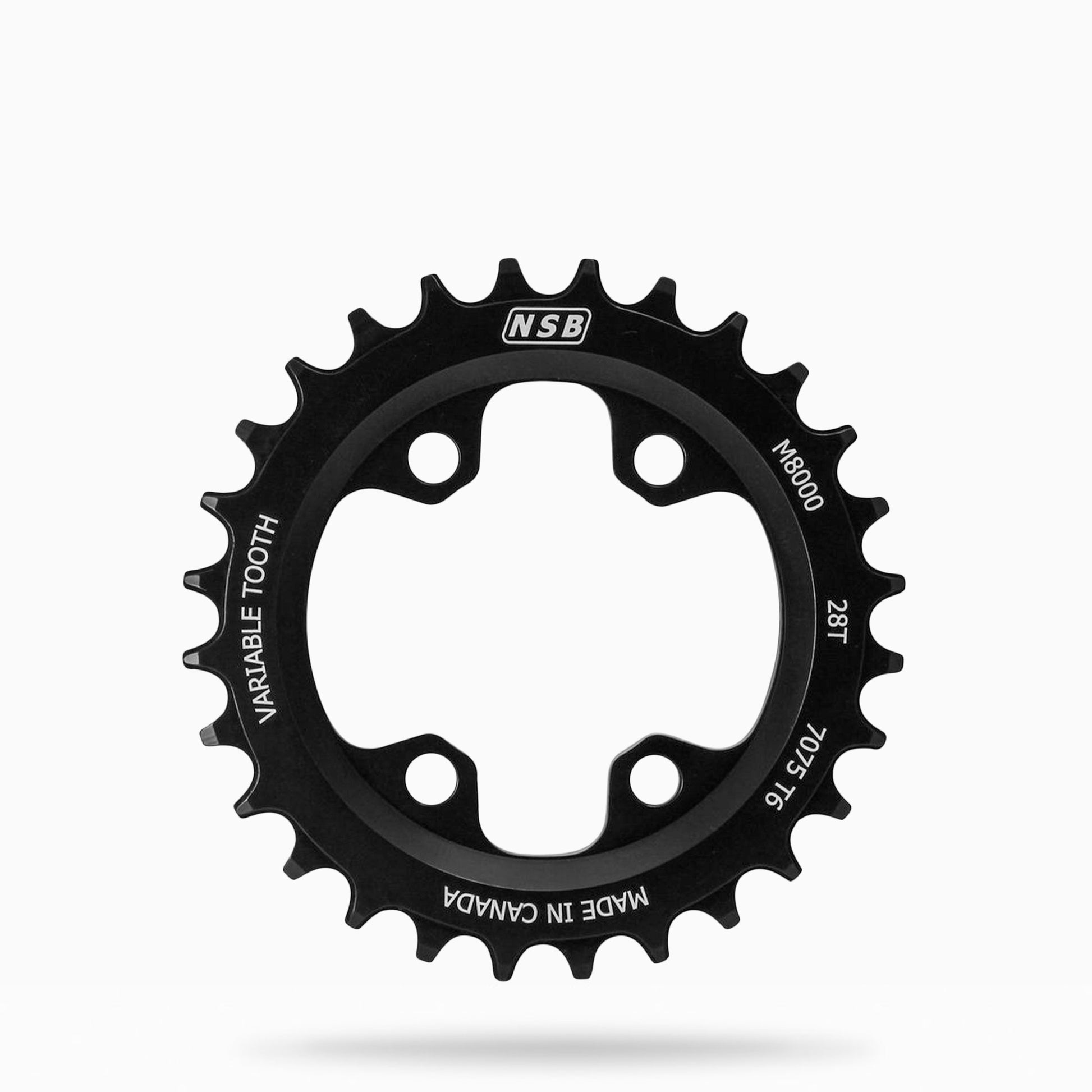

• 28T chainring uses 64mm BCD to mount onto crank arm.
• 49mm Chainline
• CNC machined from 7075 T6511 Aluminum
• Ring Sizes: 28T 30T 32T 34T 36T

Precision CNC Machined in Whistler, BC

Weight:

• 28T – 45g
• 30T – 40g
• 32T – 45g
• 34T – 50g
• 36T – 55g
