$80.00

Narrow wide direct mount chainrings for SRAM 11-speed and 12-speed Eagle cranks. The chainring is designed to give the optimum chainline – in the middle of the cassette. This gives the smoothest shifting across the cassette and the straightest chain when in the largest or smallest cog.

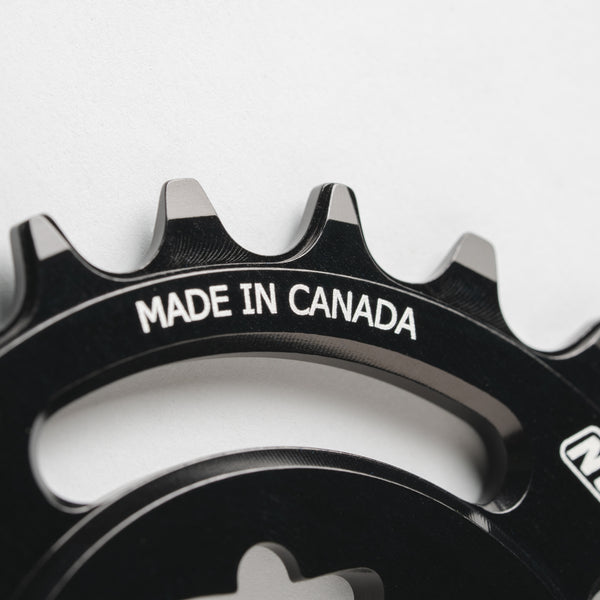

The tooth profile of our narrow-wide chainrings maintains excellent wear for a durable product.

Fits:

  • SRAM S1400, S2200, S2210, X9, X0, X01, X1, XX1, GX Cranksets

Compatible with all 9, 10, 11, & 12-speed SRAM drivetrains
Compatible with all 9, 10, & 11-speed Shimano drivetrains

Specifications:

  • Bottom Bracket Types: BB30, GXP, Boost
  • Machined from solid 7075 T6 Aluminum
  • Anodized Black with Laser Etched Graphics

Chainline:

  • BB30 48mm from the bottom bracket centre
  • GXP 48mm from the bottom bracket centre
  • Boost 51mm from the bottom bracket centre

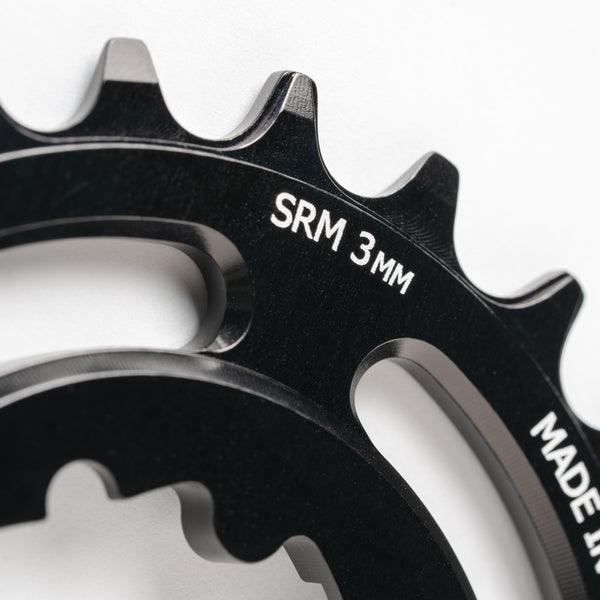

Ring Offsets:

  • GXP: 6mm
  • Boost: 3mm
  • BB30: 0mm

Weight:

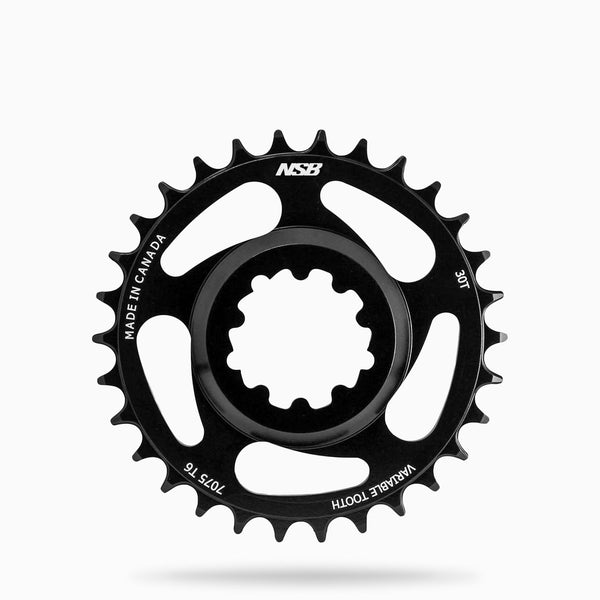

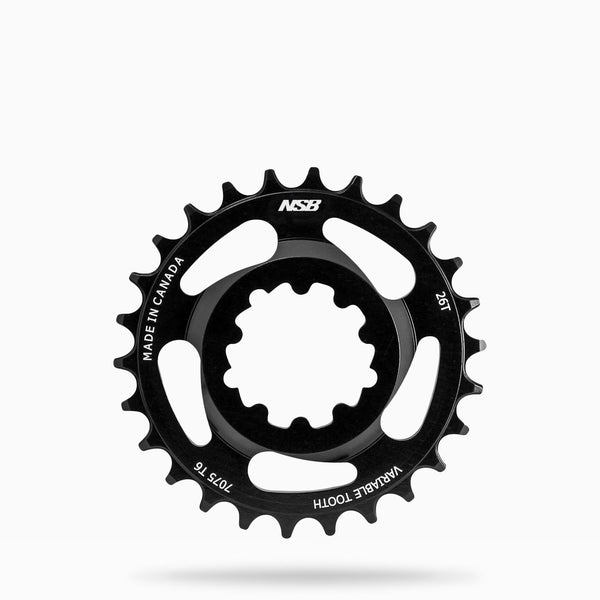

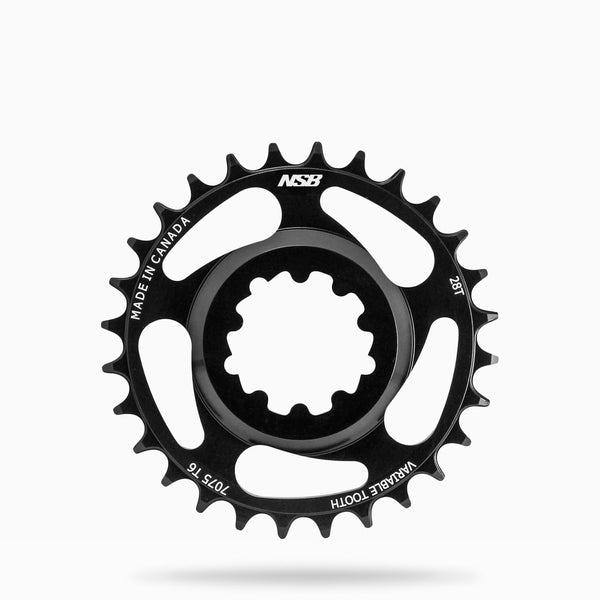

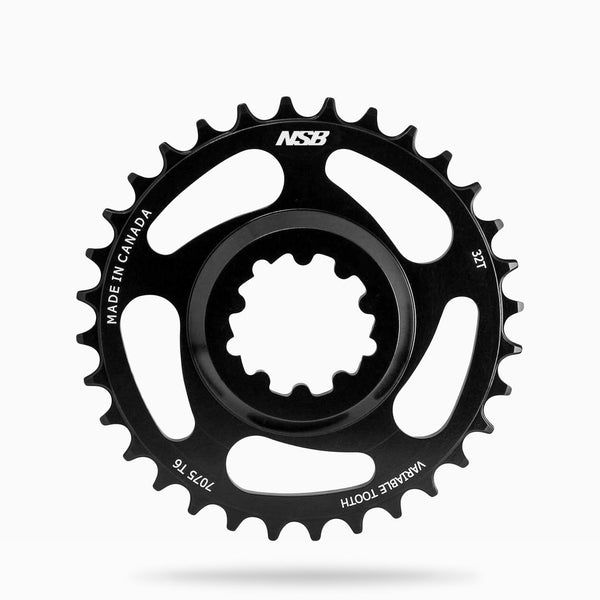

GXP

  • 26T – 60g
  • 28T – 75g
  • 30T – 85g
  • 32T – 95g
  • 34T – 105g

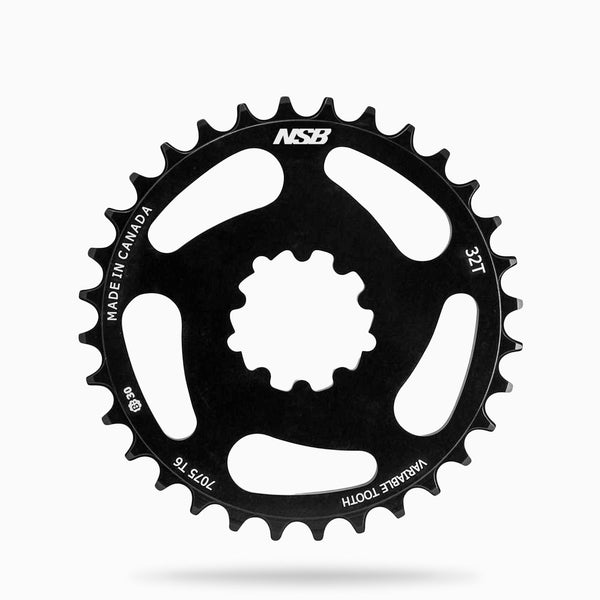

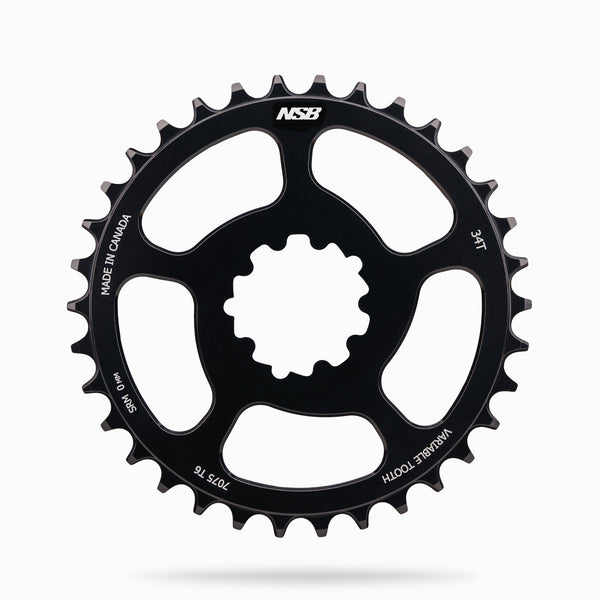

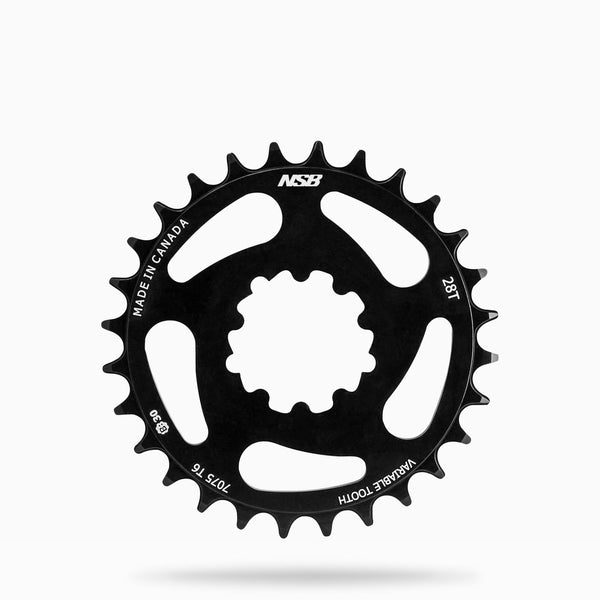

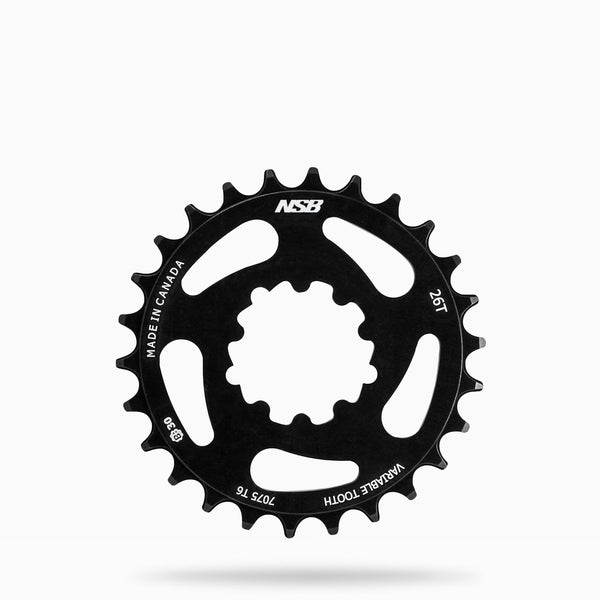

BB30

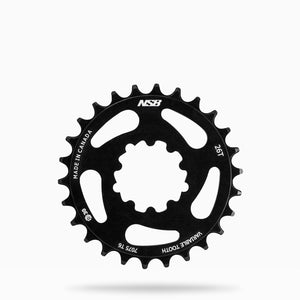

  • 26T – 50g
  • 28T – 70g

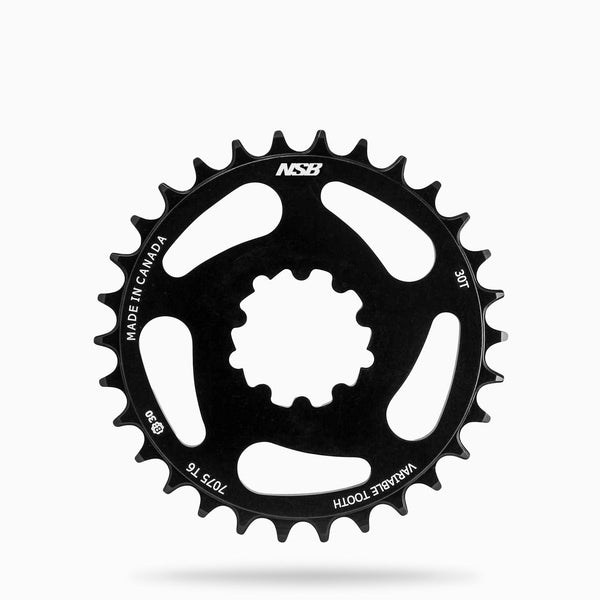

  • 30T – 80g
  • 32T – 90g
  • 34T – 100g

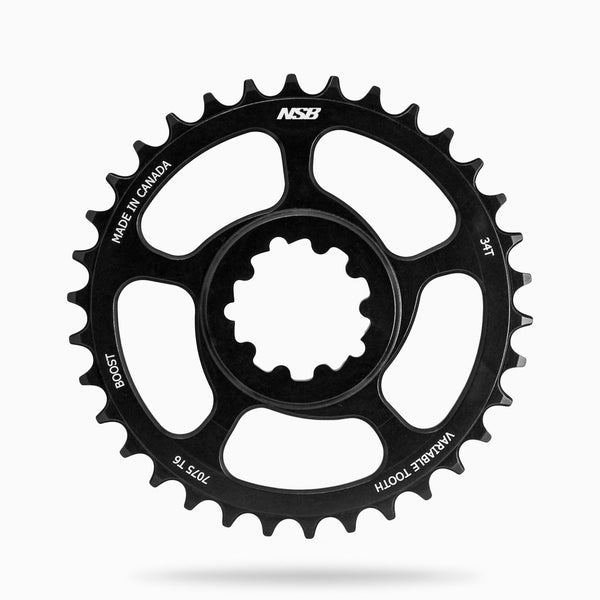

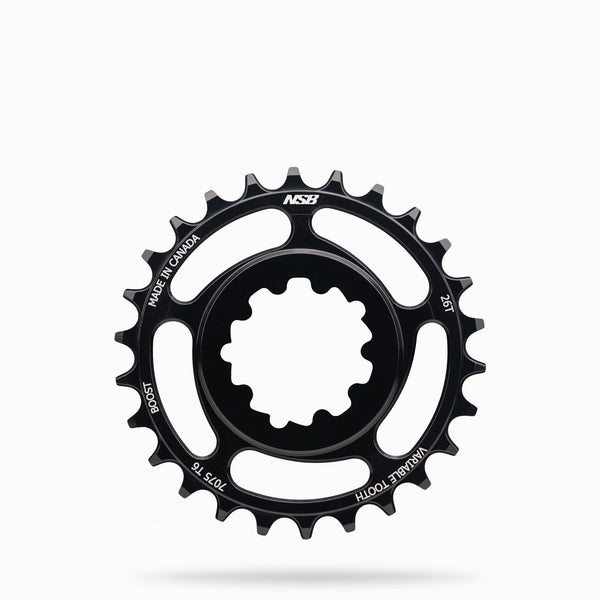

Boost

  • 26T – 45g

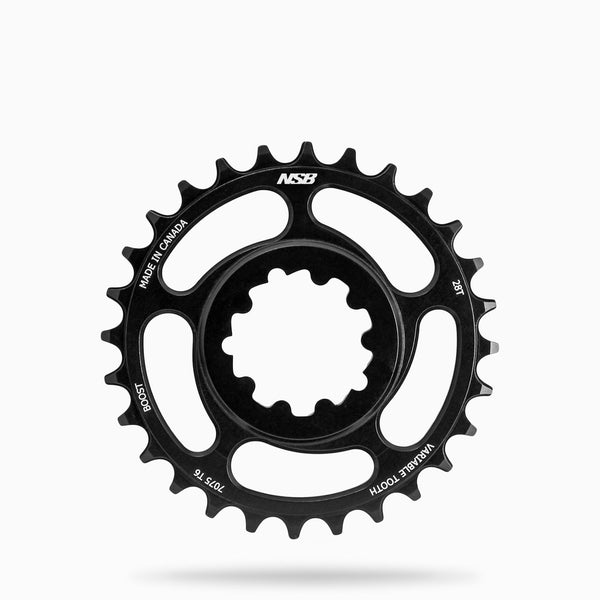

  • 28T – 60g

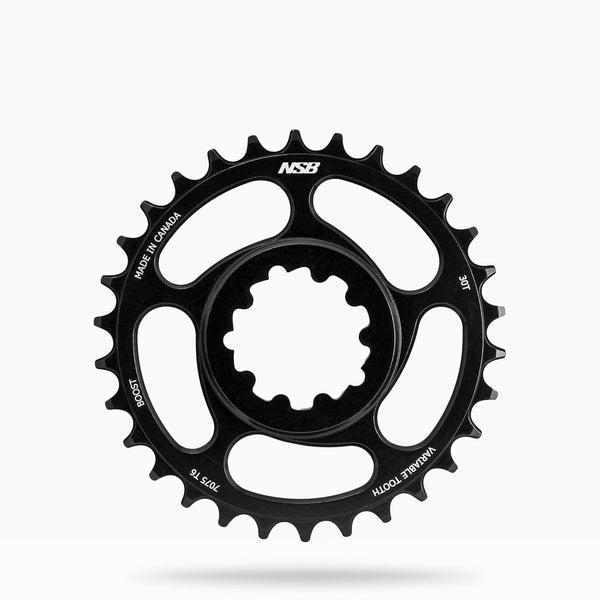

  • 30T – 70g

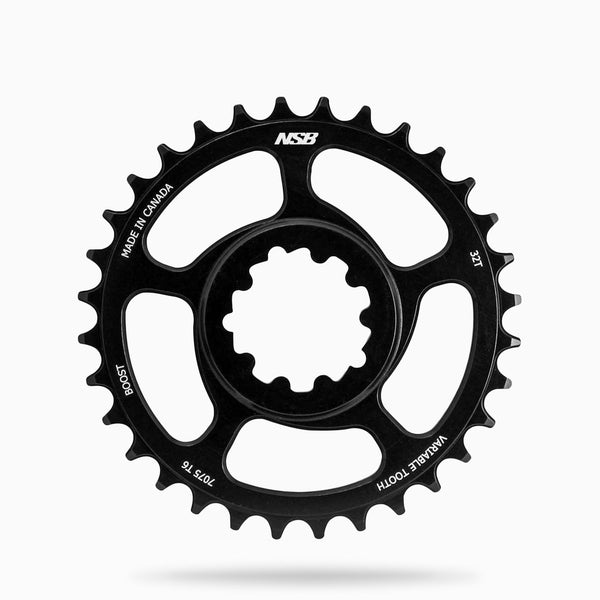

  • 32T – 80g
  • 34T – 90g

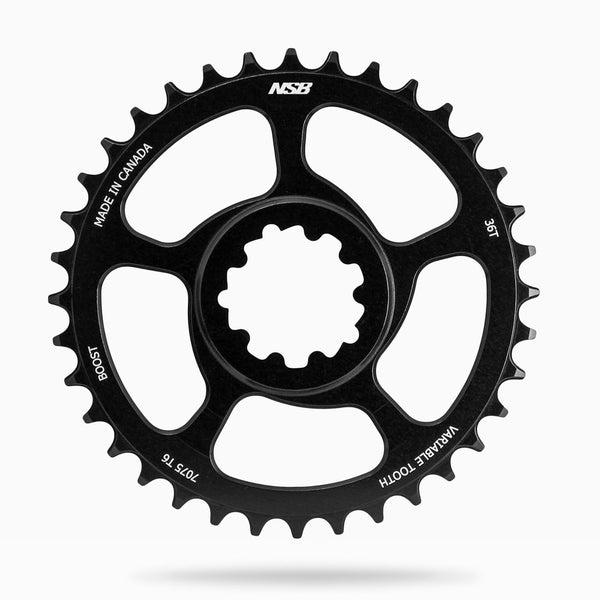

  • 36T – 100g
← Back to Chainrings
Customer Reviews
4.9 Based on 16 Reviews
5 ★
94%
15
4 ★
6%
1
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0
100reviewers would recommend this product Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
JB
09/02/2022
Justin B.
United States
I recommend this product

Good stuff

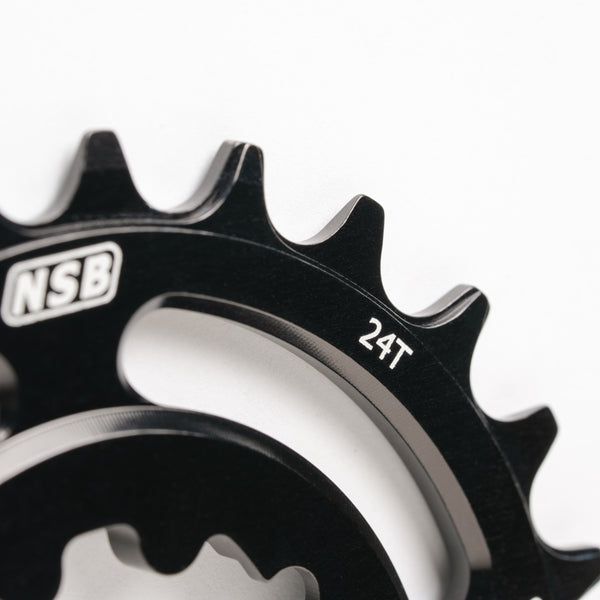

Only 24t I could find, works well

SRAM 1x11 and 1x12 Variable Tooth Direct Mount Chainrings
Share   |   Facebook  •  Twitter
Was this helpful?  0    0
MC
09/02/2022
Marco C.
Italy Italy
I recommend this product

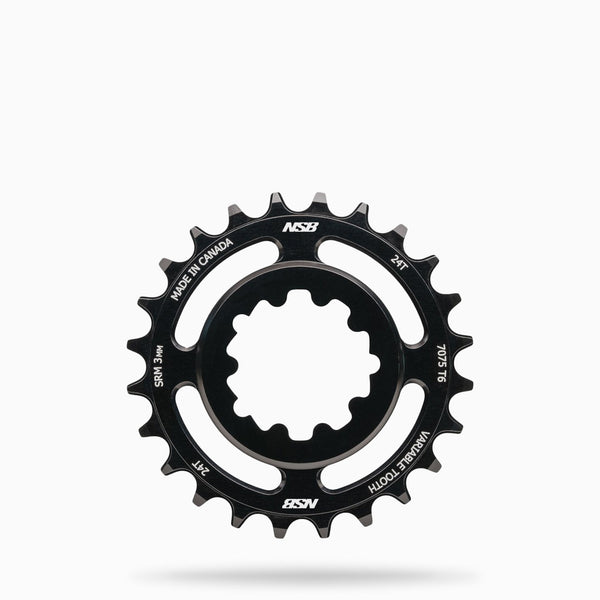

Great 24T solution for SRAM 1x12 Direct Mount Chainring
