1x 94 BCD Variable Tooth Chainrings for SRAM X01 & X1

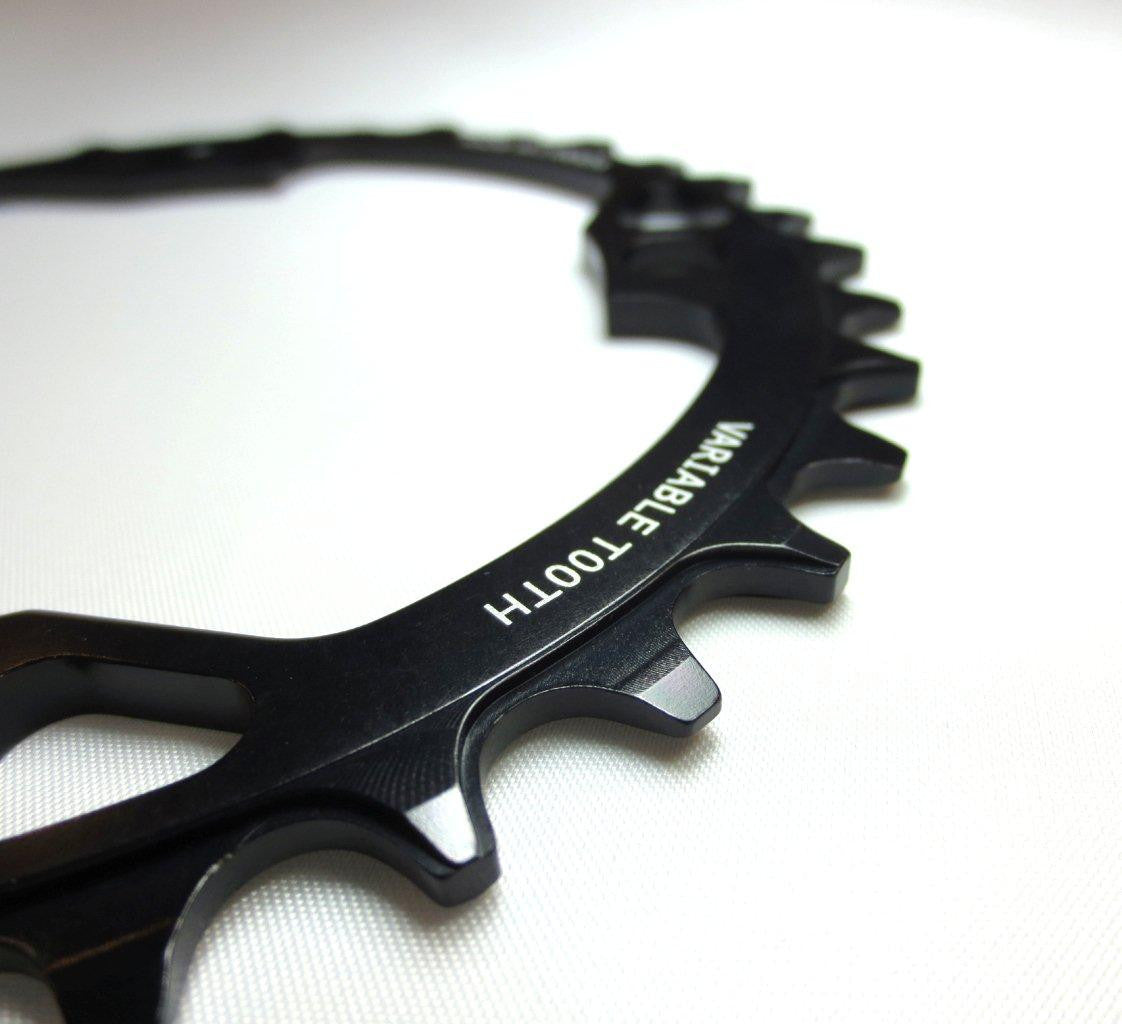

The NSB 1x Variable Tooth Chainrings uses a ‘Thin-Thick’ variable tooth thickness mated with a standard chainring tooth profile to help retain the chain on the front ring during all types of riding. By increasing the tooth thickness on half of the ring’s teeth, the chain is given less room to move and virtually eliminates chain drop when running a single front chainring. These rings are specifically made for SRAM X01 and X1 cranksets.

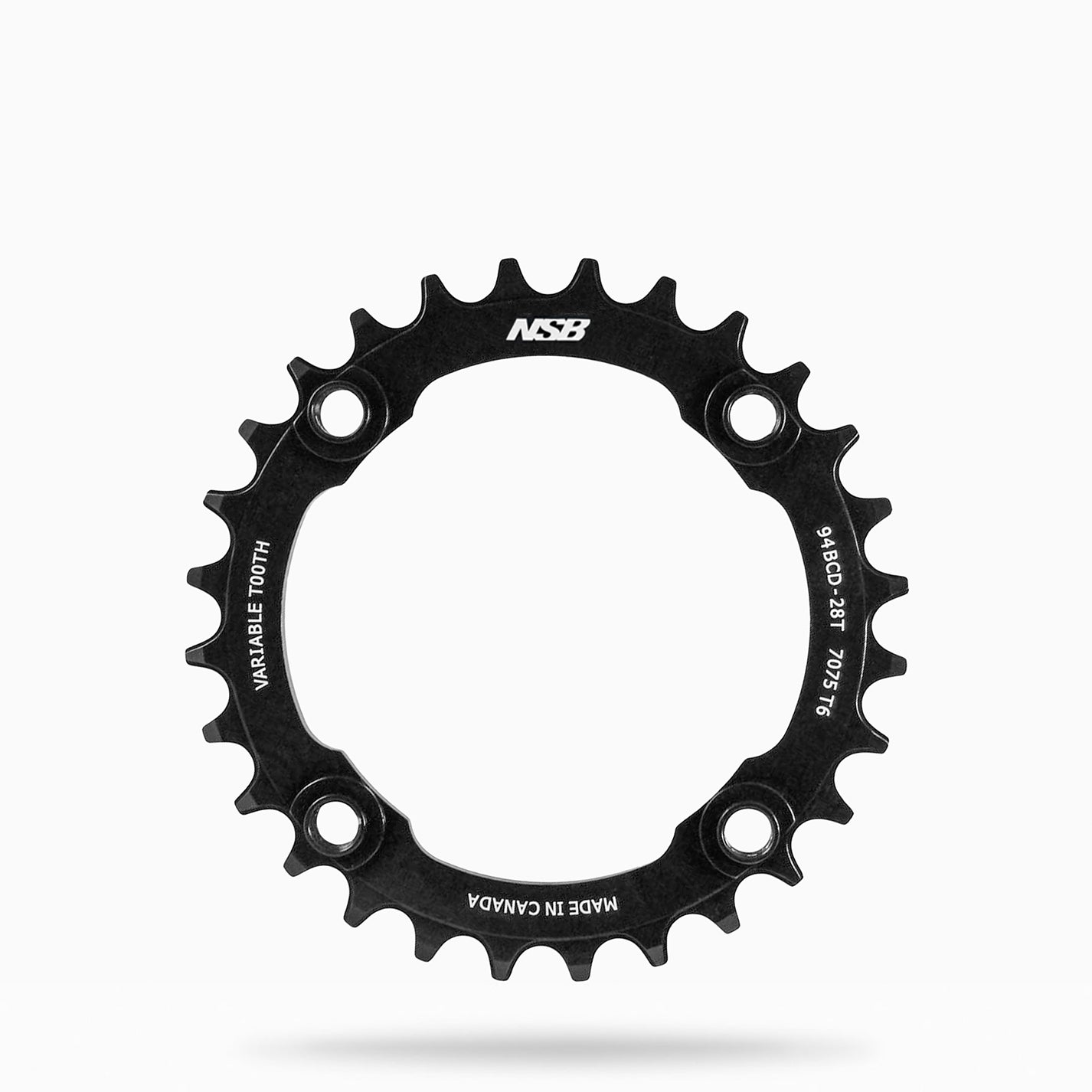

Note: The 28T - 94BCD ring does not use the OE screws. The NSB 28T ring requires 4pc of M8 x .75 x 10mm long bolts. These are commonly available at your LBS and are the most commonly used bolt and nut combination to mount chainring to cranks. All other sizes 30T & 32T use the OE screws.
94mm Bolt Diameter Circle (4 bolt 94 BCD)
Bottom Bracket Types: BB30 & GXP
Chainline: 28T 48mm / 30T & 32T 49.5mm
Machined from solid 7075 T6 Aluminum
Anodized Black with Laser Etched Graphics
Compatible with all 9, 10, 11, 12 speed drive trains
Precision CNC Machined in Whistler, BC
28T – 40g

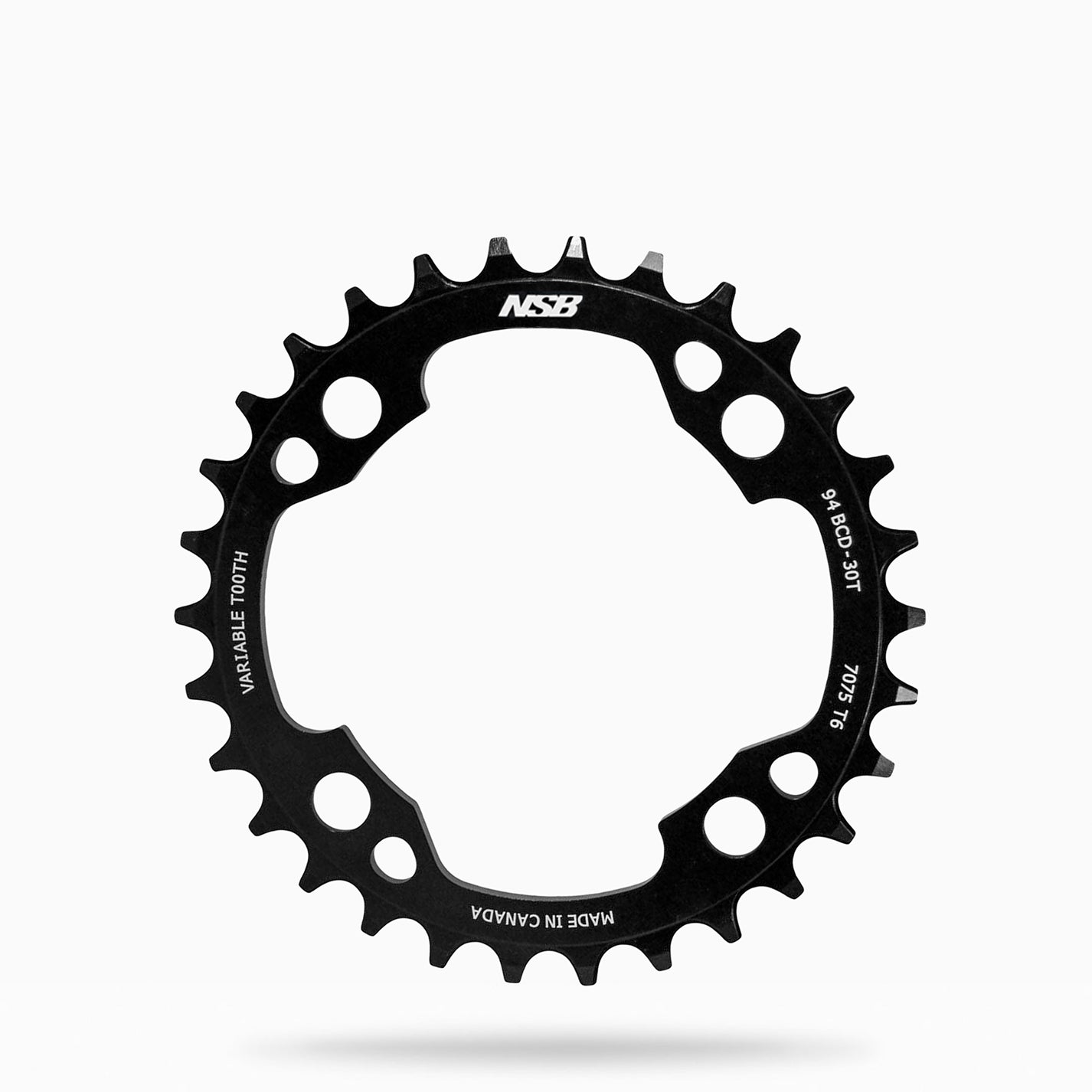

30T – 37g

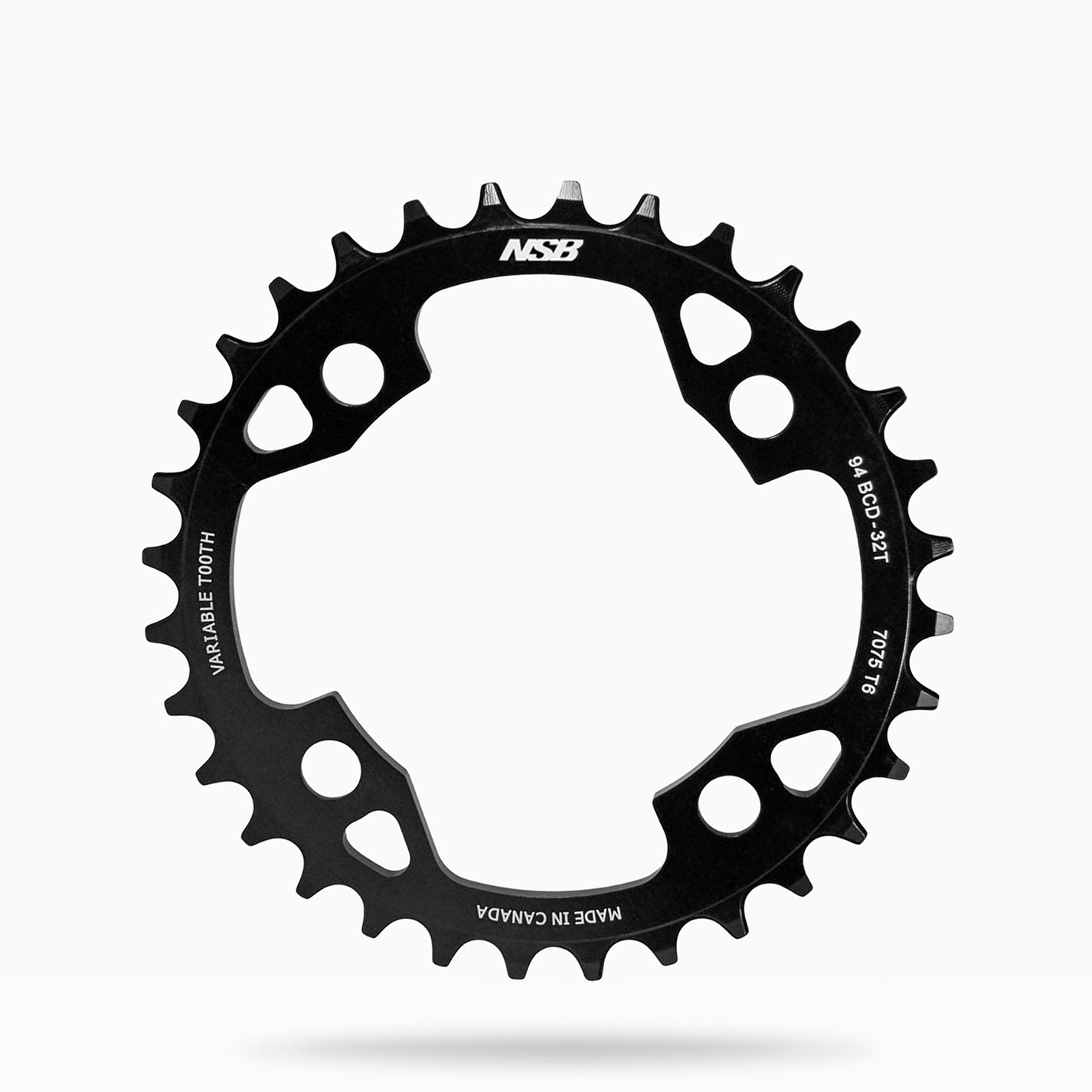

32T – 42g

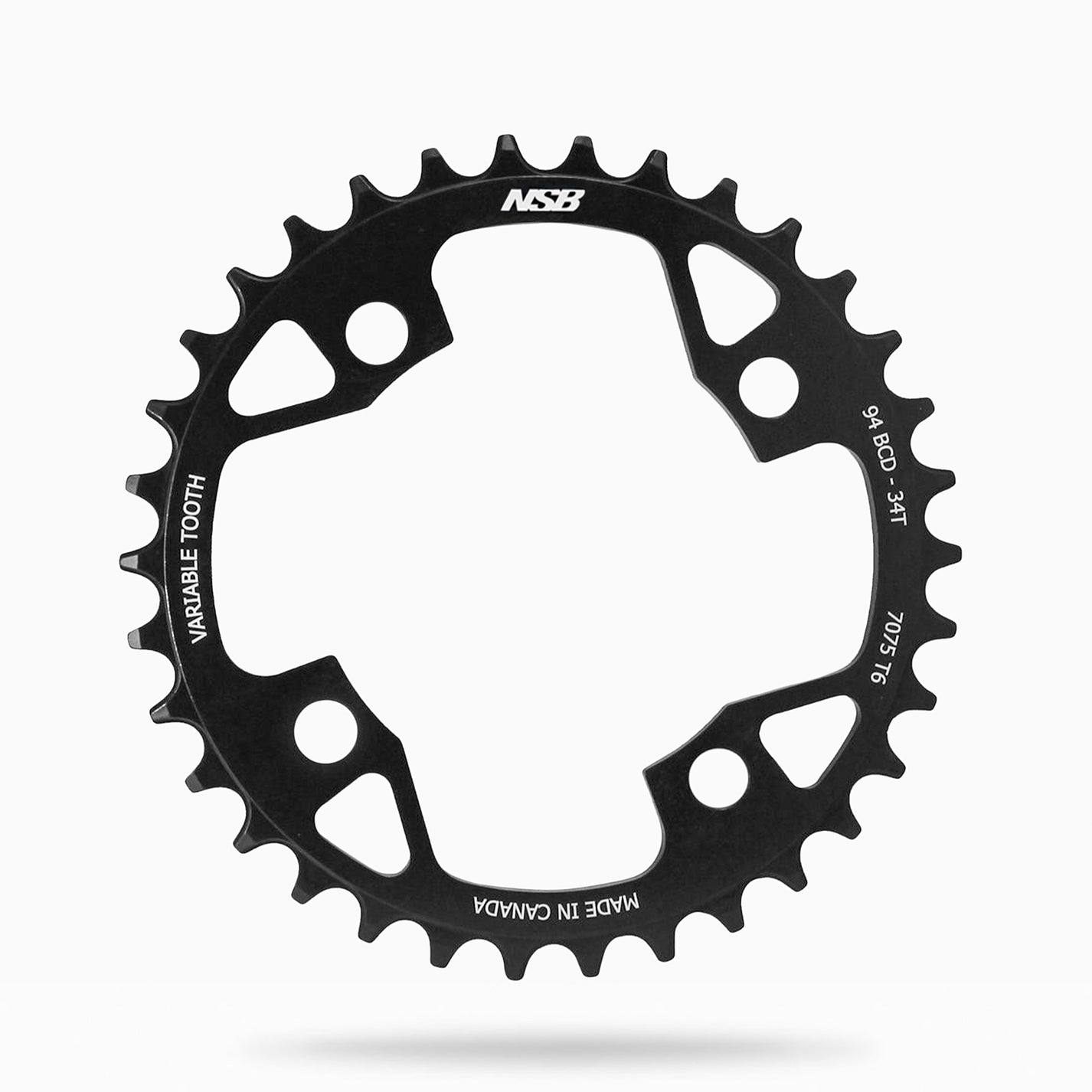

34T – 55g

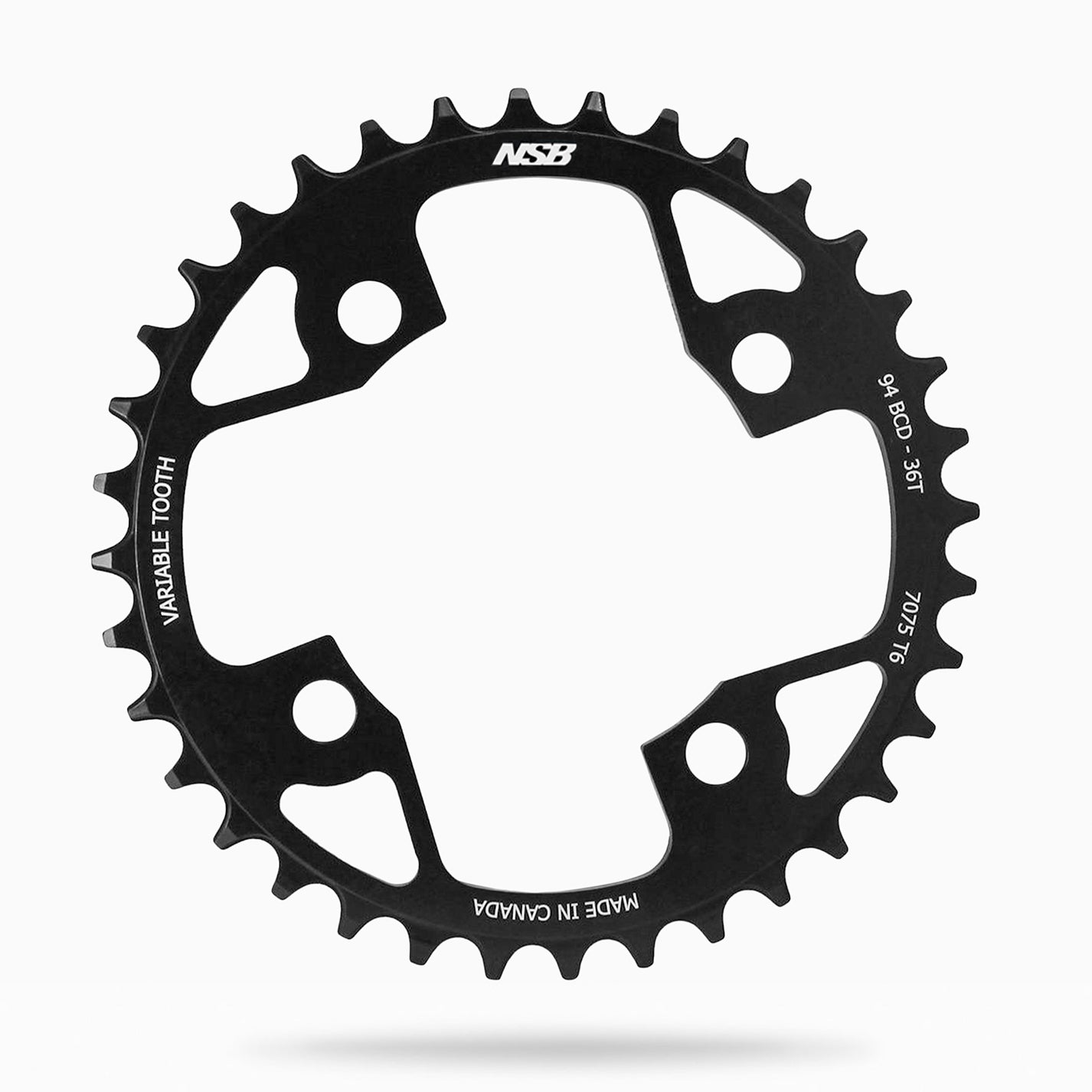

36T – 65g
