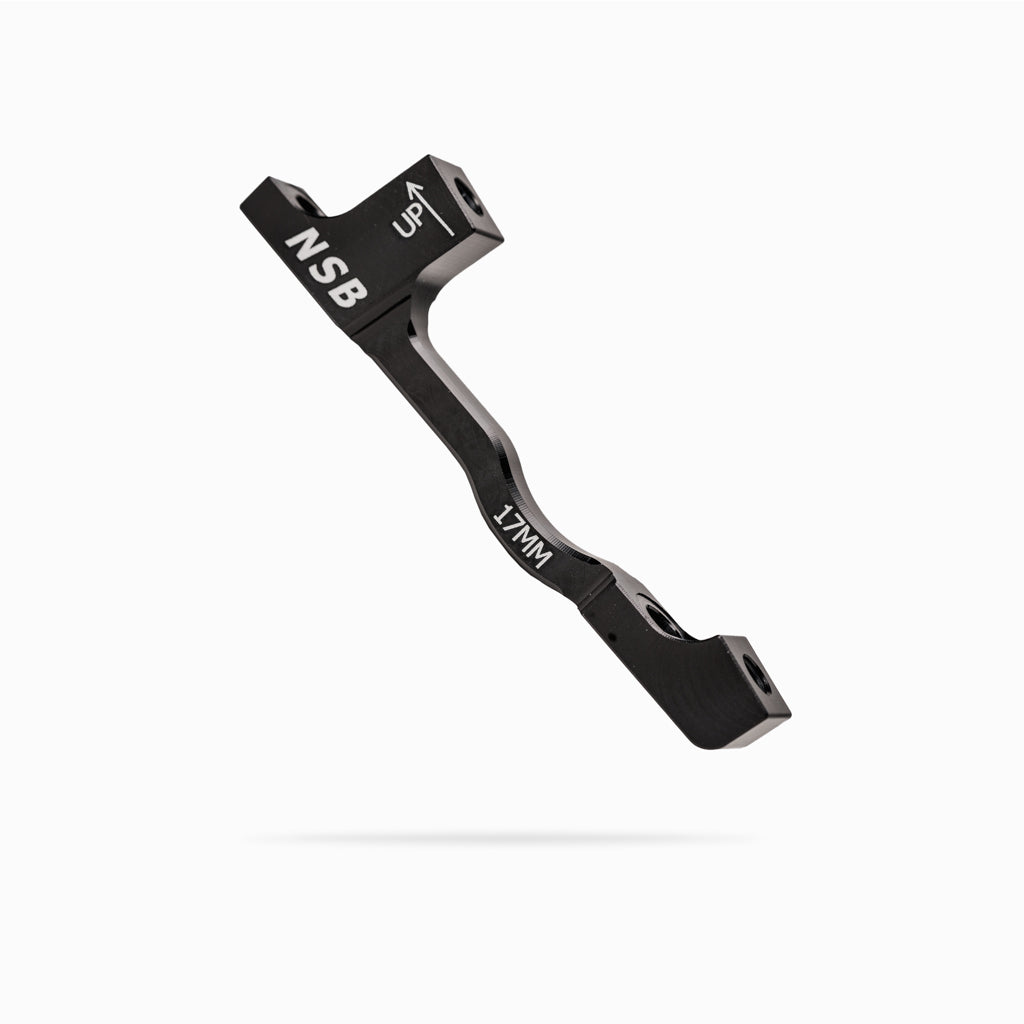

• North Shore Billet 17mm post mount brake adapter black colour

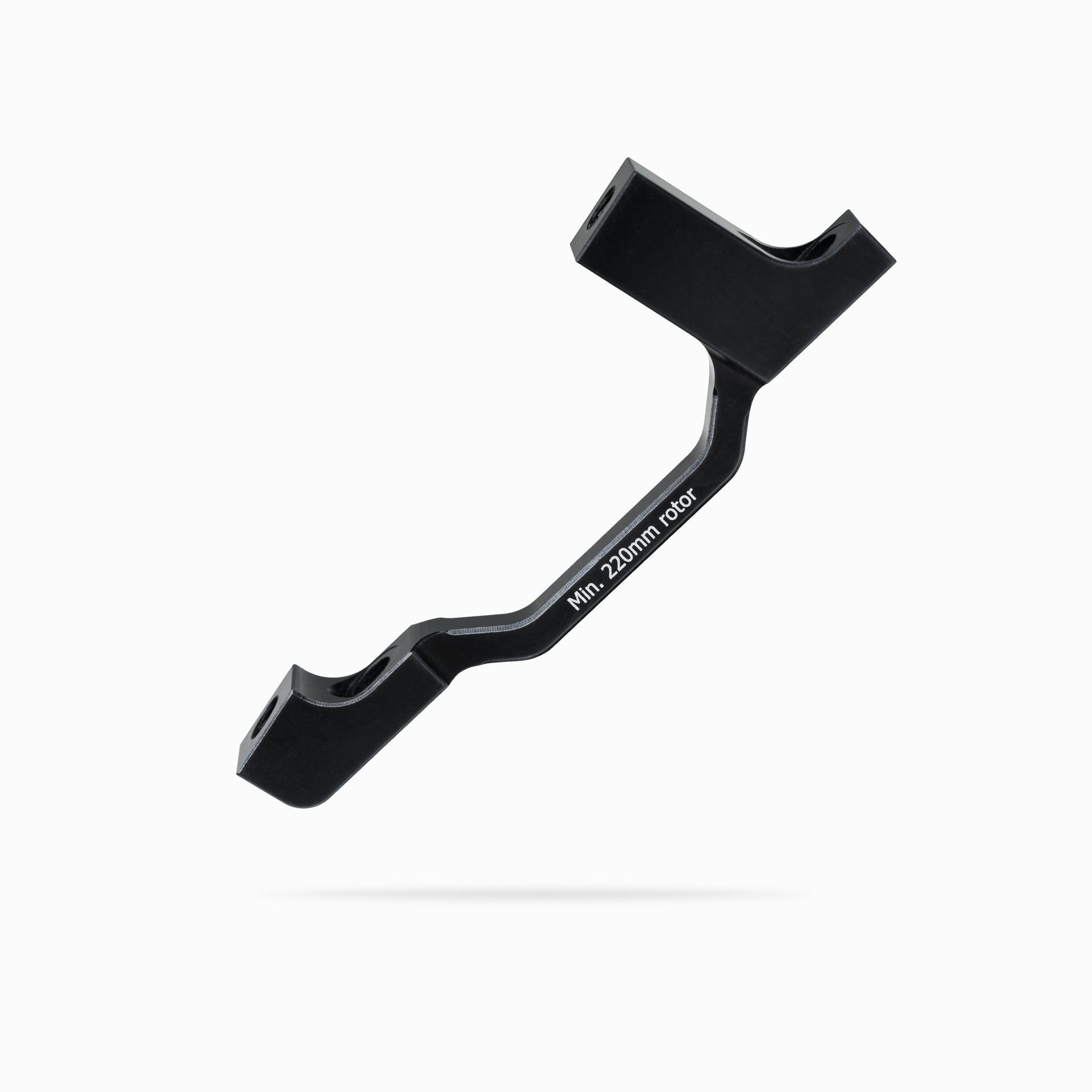

  • North Shore Billet 20mm post mount brake adapter for 220mm rotors. Black colour.

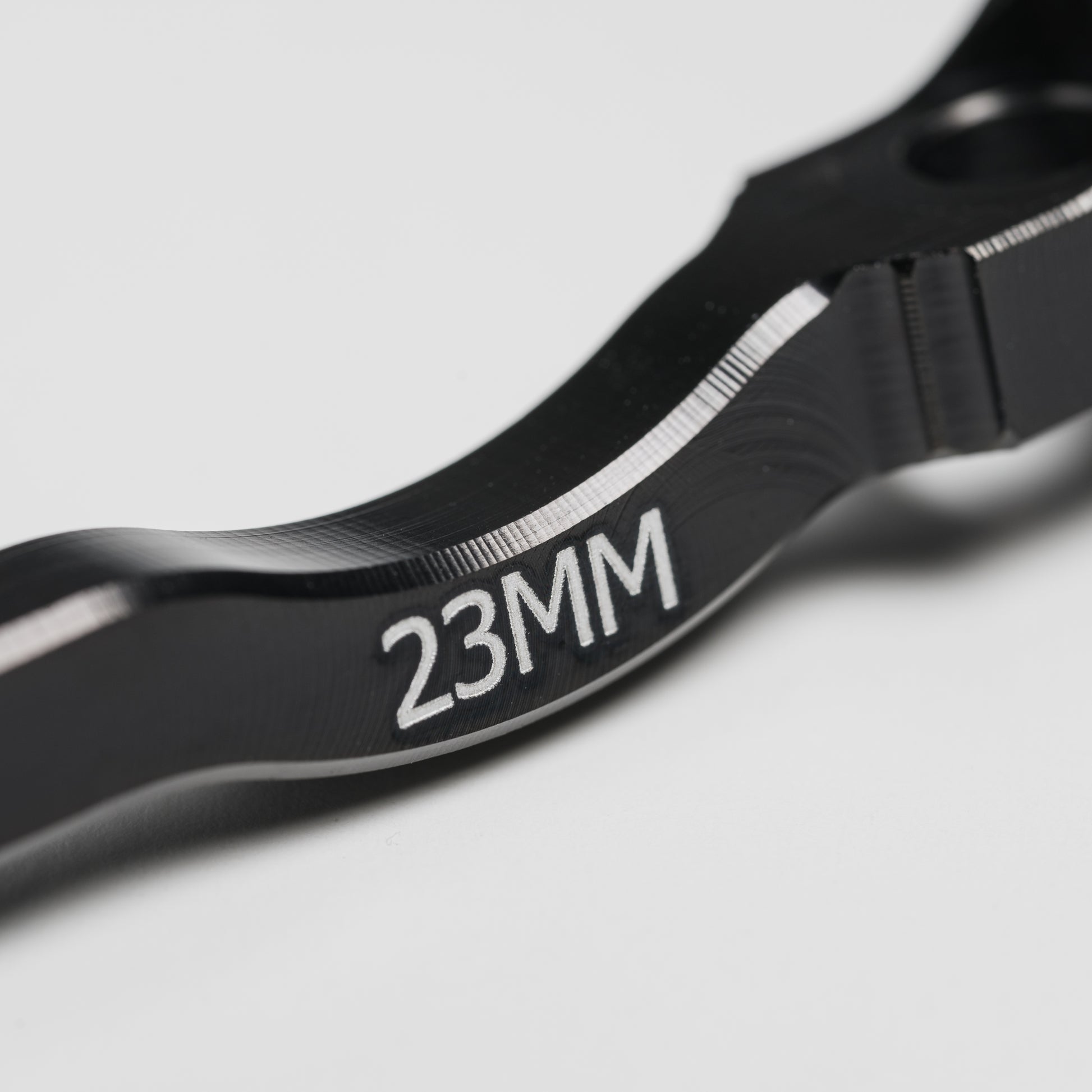

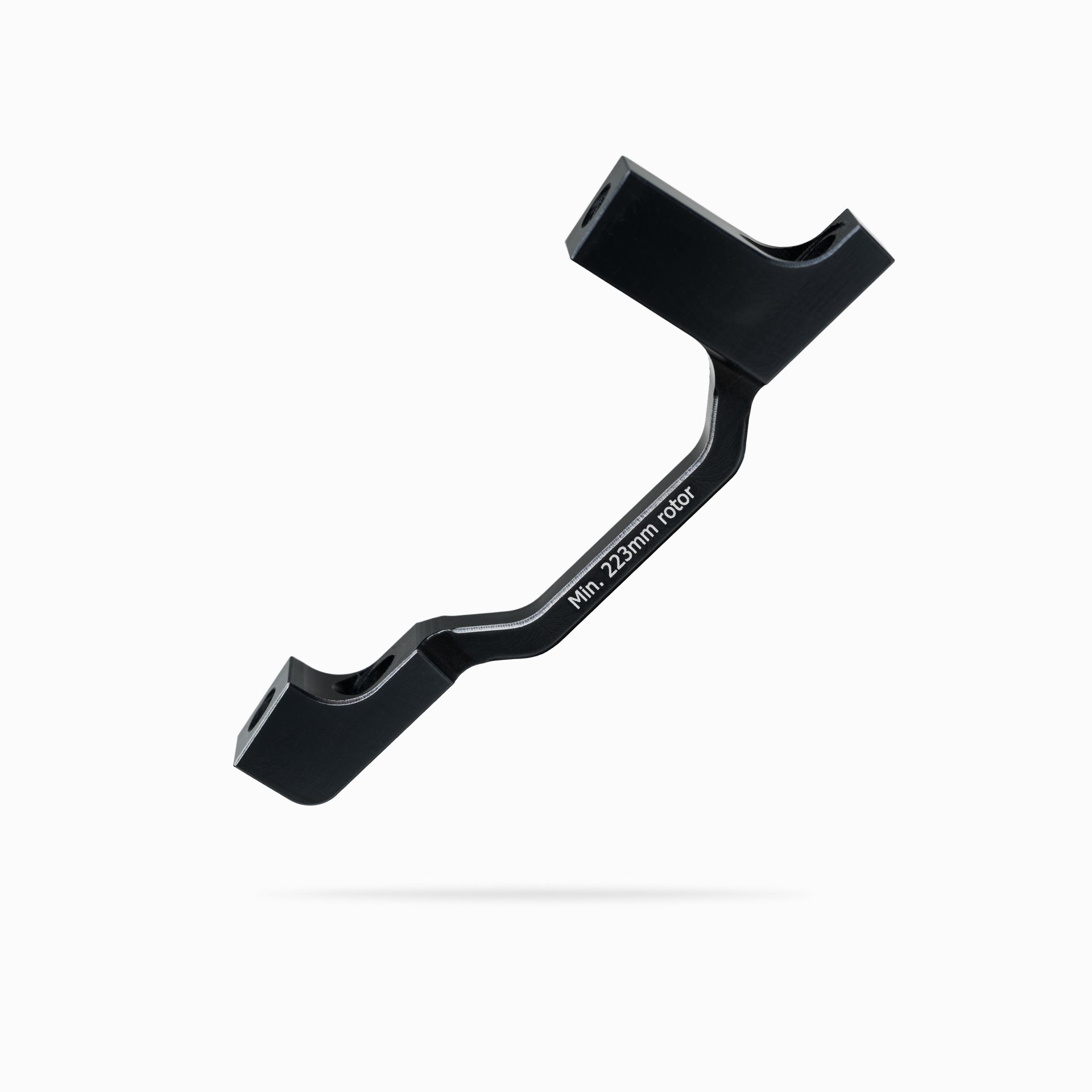

  • Back of North Shore Billet 23mm post mount brake adapter for 223mm rotors. Black colour.
  • North Shore Billet 23mm post mount brake adapter with button head low profile bolt.

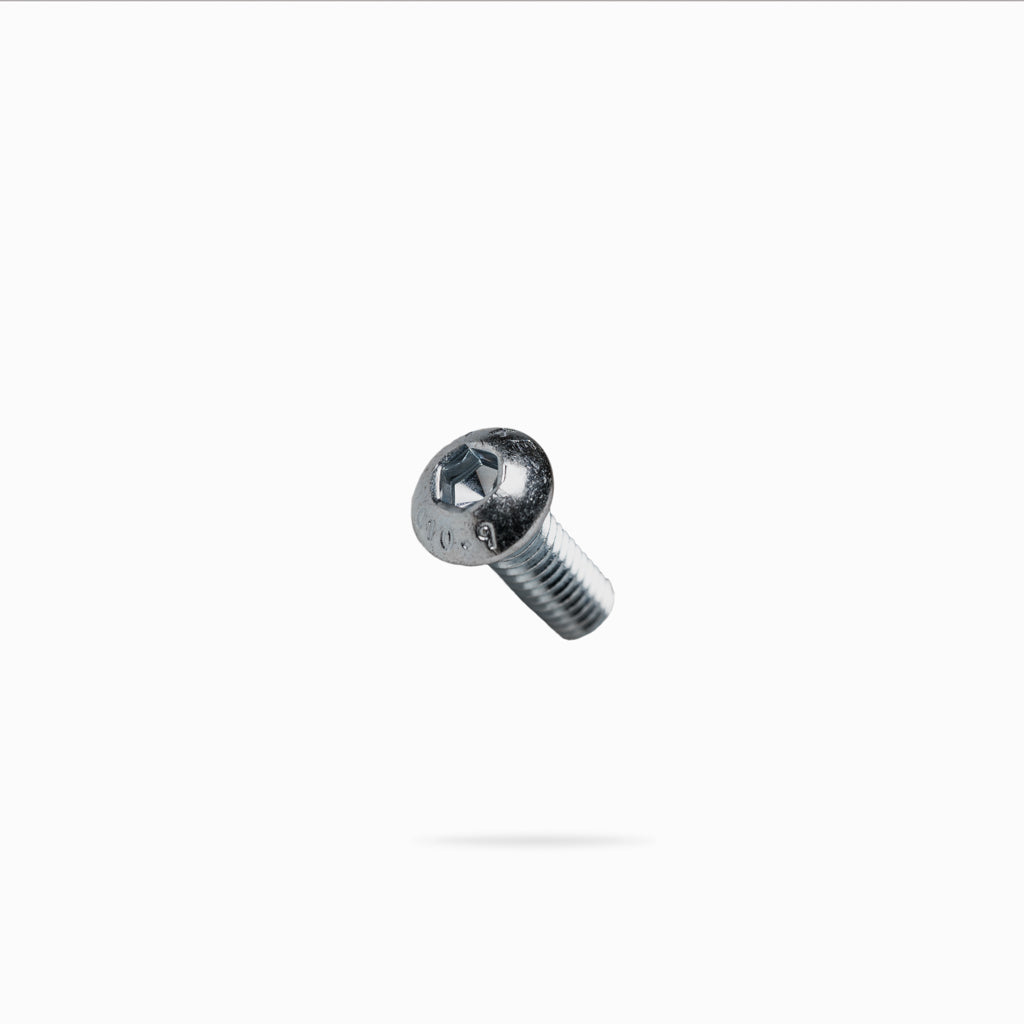

  • Low-profile button head bolt

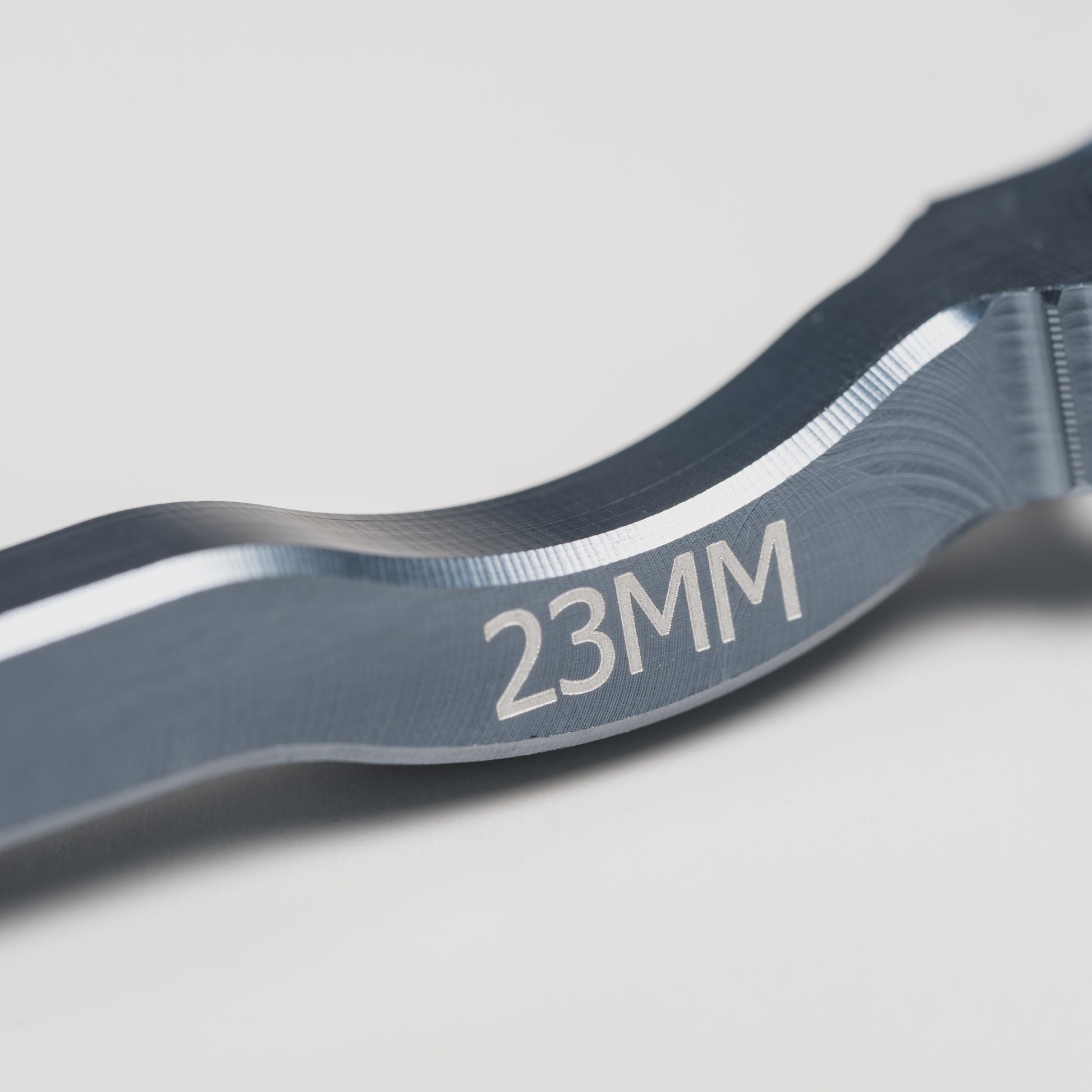

  • North Shore Billet brake adapter detail 1

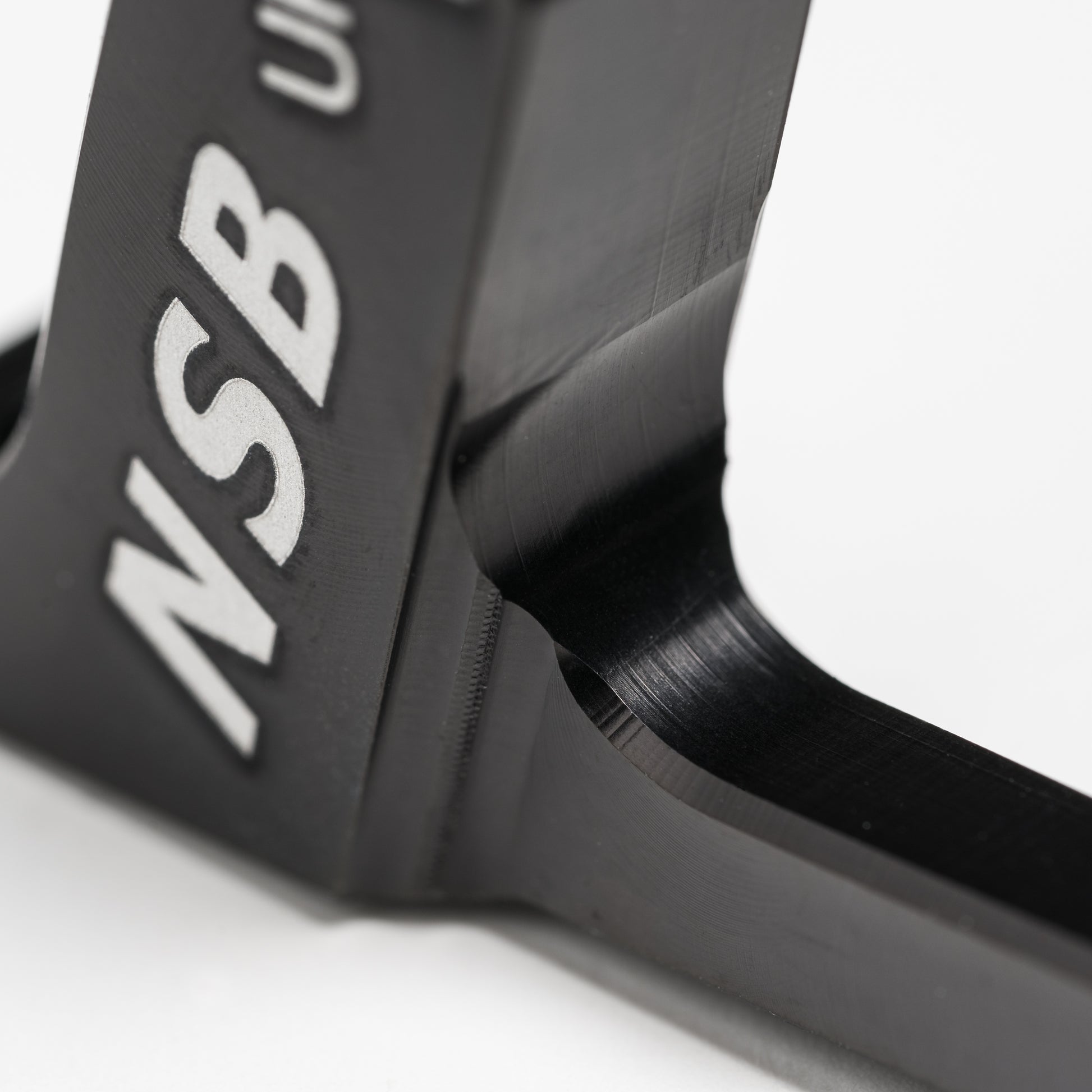

  • North Shore Billet brake adapter detail 2
  • North Shore Billet post mount brake adapter detail 3
  • Prototype North Shore Billet 20mm post mount brake adapter for 220mm rotors
1 13

North Shore Billet

Post Mount Disk Brake Adapter

Post Mount Disk Brake Adapter

$42.00 CAD
$42.00 CAD
Sale Sold out
Adapter Size
Color

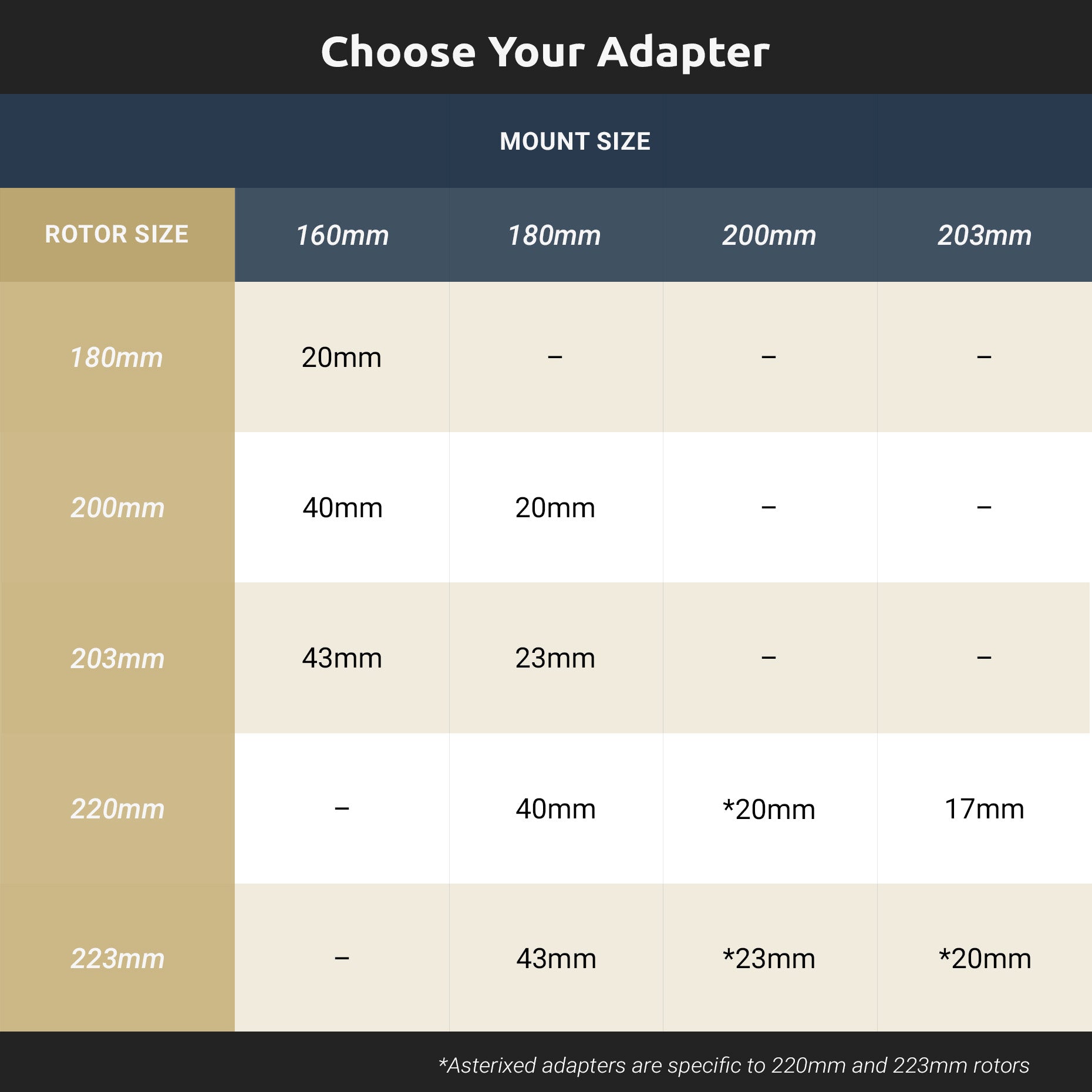

NEW: Please refer to our table graphic in the images for the correct adapter size you need.

Disc brake adaptors available for Shimano, SRAM, Hope, Hayes, Formula etc. rotors:

  • 180mm
  • 183mm
  • 185mm
  • 200mm
  • 203mm
  • 220mm
  • 223mm

CNC machined from 6061 T6511 aluminum. Machined surfaces allow for better caliper alignment and a more rigid brake setup.

The Post Mount standard is universal for front and rear brakes.

Frames and forks that use the post-mount brake interface use a stock size varying from 160mm to 203mm. It’s important to check your frame and fork for the default post mount size before ordering a suitable adapter.

To calculate the size of the required adapter, subtract the frame/fork stock mount size from the desired rotor size.

If you’re using brakes with large calipers (Magura MT5/MT7, Hope Tech V4, Hayes Dominion A4 etc.), please also order a low profile (button head) bolt kit to ensure correct fitment.

Our disc brake adapters do not come with mounting bolts but if needed, we have sets of 4 bolts available.
