North Shore Billet

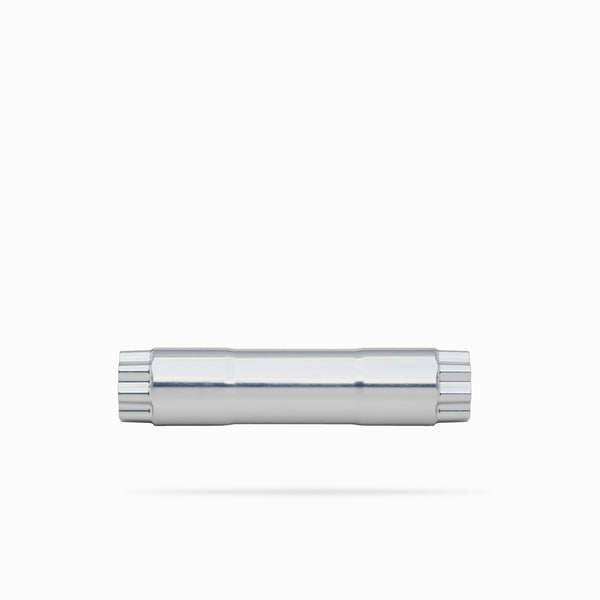

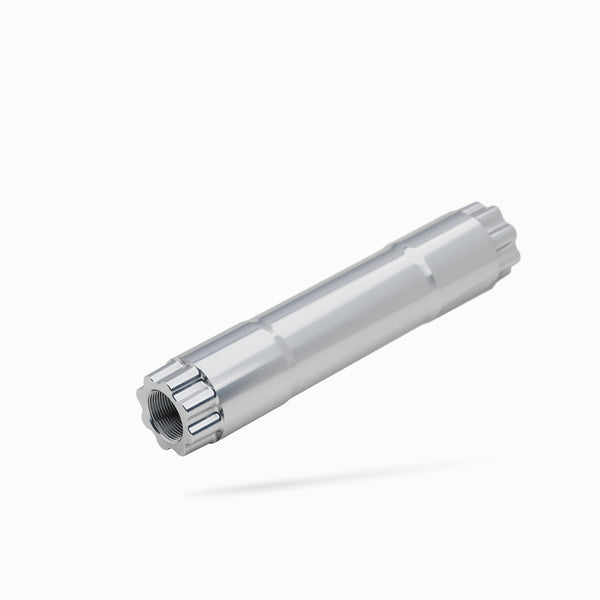

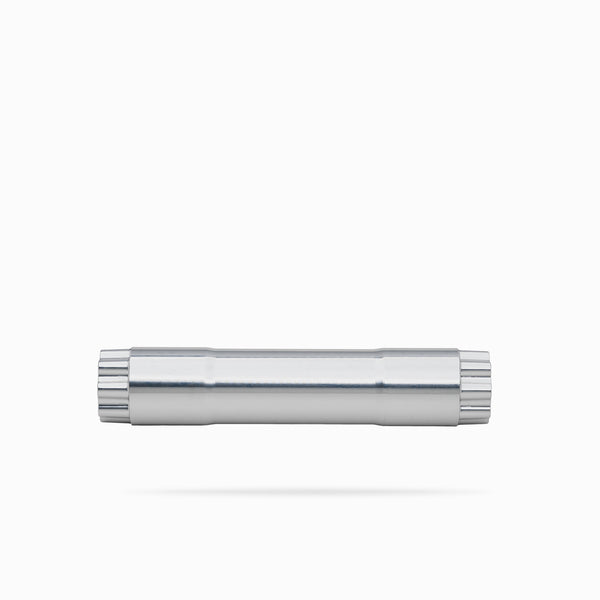

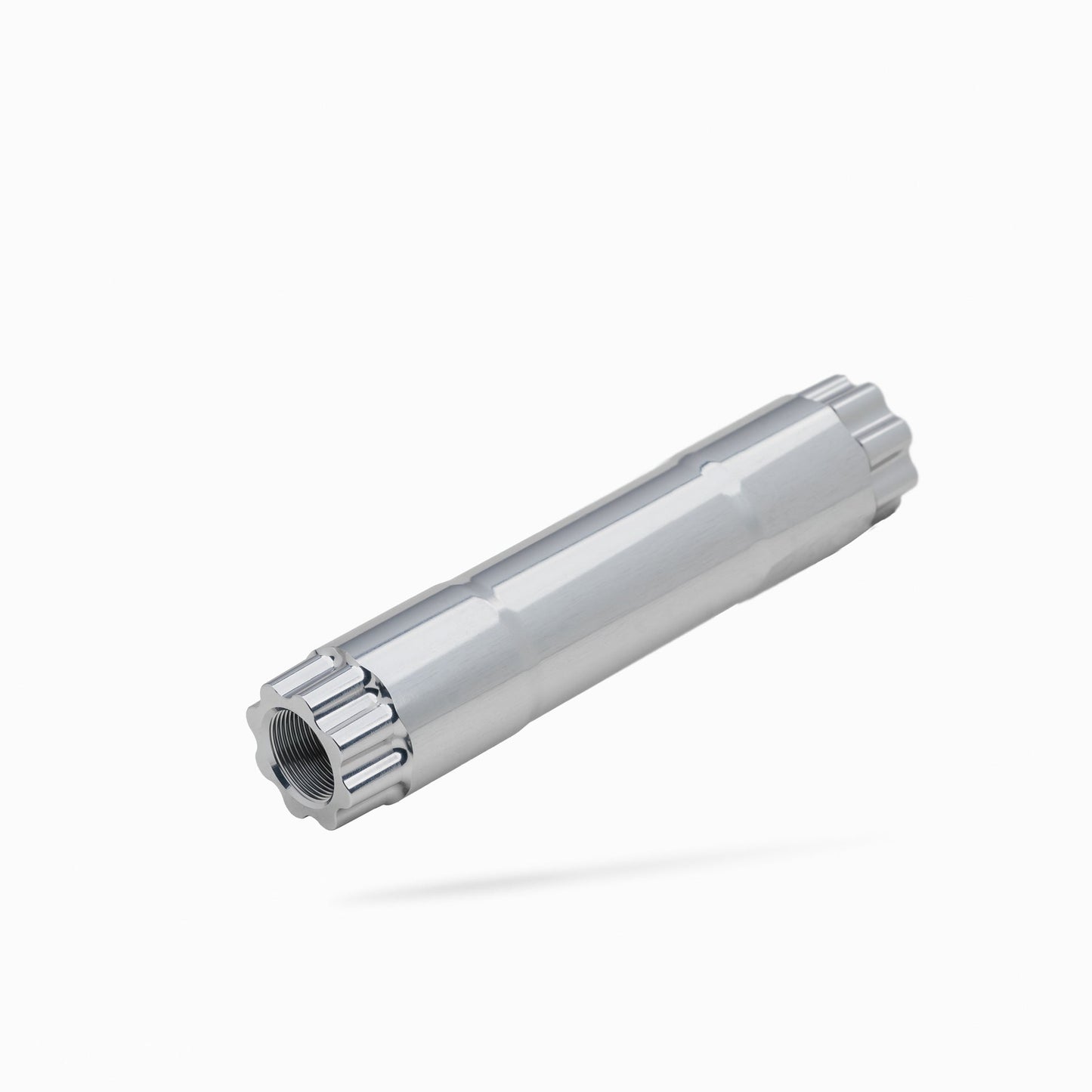

Talon Crank Spindle

Talon Crank Spindle

$65.00 USD
$65.00 USD
Sale Sold out
Size

For riders who would like to swap their Talon cranks to a bike with a different bottom bracket width, or if a new spindle is required, our replacement spindles are available.

Fits:

  • Enduro/trail bikes with 73mm threaded and PF92 BBs
    • 133.5mm spindle length and 171.4mm Q-Factor
    • 52mm Chainline with 3mm offset chainring
  • Superboost enduro/trail bikes with 73mm threaded and PF92 BBs that require additional space and a wider Q-Factor (Eg: Evil bikes)
    • 138.5mm spindle length and 176.4mm Q-Factor
    • 55mm Chainline with 3mm offset chainring
  • Downhill bikes with 83mm threaded BBs and PF107 BBs
    • 148.5mm spindle length and 186.4mm Q-Factor
    • 56.5mm Chainline with 6mm offset chainring

Specifications:

  • 30mm crank spindle diameter
  • Machined from 7075 T6 aluminum
  • Clear anodized
